Subsoiler
Break Soil Compaction.
Improve Root Growth.
Shree Umiya is a trusted Subsoiler manufacturer and exporter from India, offering robust agricultural implements designed to break compacted soil layers without disturbing the topsoil. Engineered for deep tillage and long-lasting performance, our Subsoilers improve soil aeration, water infiltration, and root development, helping farmers enhance soil productivity and achieve healthier crop growth across diverse farming conditions.
Enquire Now
Chetak
-
Model
Chetak
-
Series
Subsoiler
-
Brand
Shree Umiya
-
Help
Product Specification
| Model | CHETAK |
|---|---|
| NUMBER OF TYNE | 5 TYNE |
| 3 POINT LINKAGE | CATAGORY II |
| DISTANCE BETWEEN TYNE | 750 MM (ADJUSTABLE) |
| DIMENSION (L x W x H) | 1855 X 1120 X 1415 MM |
| WORKING WIDTH (MAX) | 1815 MM |
| DEPTH (MAX) | 600 MM |
| SAFETY DEVICE | SHARE BOLT |
| WEIGHT (KG) | 442 KG |
| TRACTOR POWER | 60 HP AND ABOVE (DEPEND ON SOIL CONDITION) |

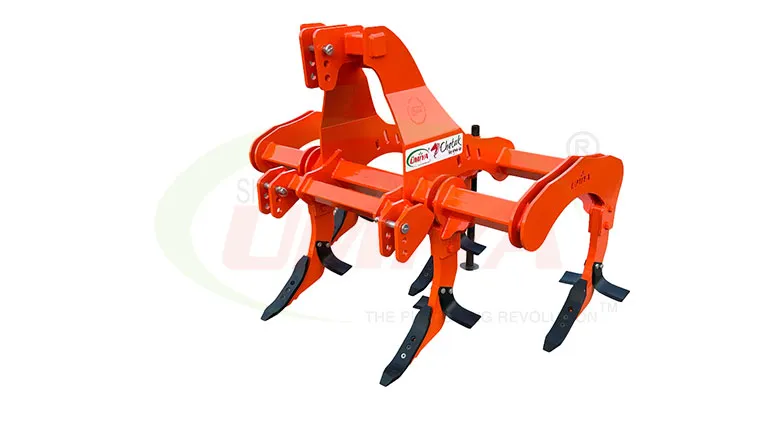

Chetak Light
-
Model
Chetak Light
-
Series
Subsoiler
-
Brand
Shree Umiya
-
Help
Product Specification
| Model | CHETAK | CHETAK | CHETAK |
|---|---|---|---|
| NO. OF TYNE | 3 | 5 | 7 |
| 3 POINT LINKAGE | CATAGORY - II | CATAGORY - II | CATAGORY - II |
| DISTANCE BETWEEN TYNE | 380 | 380 | 380 |
| DIMENSION (L X W X H) | 1590 X 1025 X 1350 | 1825 X 1025 X 1350 | 2585 X 1025 X 1350 |
| WORKING WIDTH (MAX) | 1065 | 1825 | 2585 |
| DEPTH (MAX) | 510 | 510 | 510 |
| SAFETY DEVICE | SHARE BOLT | SHARE BOLT | SHARE BOLT |
| WEIGHT | 300 | 365 | 450 |
| TRACTOR POWER | 40 TO 50 | 45 TO 55 | 55 TO 65 |
01
Heavy-Duty Subsoilers for Healthier
and More
Productive Soil
A Subsoiler is a deep tillage implement specifically designed to break hardpan layers that develop beneath the soil surface due to repeated cultivation, heavy machinery movement, or natural soil compaction. These compacted layers restrict root penetration, reduce water absorption, and limit nutrient availability, ultimately affecting crop productivity.
Shree Umiya Subsoilers are engineered to penetrate deep into the soil and loosen compacted layers without disturbing the fertile topsoil. This improves soil structure, enhances drainage, increases moisture retention, and promotes stronger root development. Built with heavy-duty construction and precision engineering, our Subsoilers deliver reliable performance in demanding agricultural conditions, making them an essential implement for sustainable and productive farming.
02
Key Features
01
Heavy-duty frame for deep tillage applications
02
High-strength tine for effective hardpan breaking
03
Strong wear-resistant shank construction
04
Deep soil penetration with minimal surface disturbance
05
Improved water infiltration and drainage
06
Low maintenance design
07
Durable construction for long service life
08
Suitable for a wide range of tractor models
09
Reliable performance in compacted soils
10
Engineered for demanding agricultural operations
03
Benefits of Subsoiler
Shree Umiya Subsoilers help restore soil health by breaking compacted layers that restrict plant growth and reduce field productivity.
Breaks Hardpan Layers
Penetrates deep below the soil surface to eliminate compacted layers, allowing roots to grow freely.
Improves Root Development
Creates favourable conditions for deeper and healthier root systems, enabling crops to absorb more water and nutrients.
Enhances Water Infiltration
Improves the movement of rainwater and irrigation water into the soil while reducing surface runoff.
Better Soil Aeration
Loosens compacted soil to improve air circulation, encouraging healthy microbial activity and stronger crop growth.
Increases Soil Productivity
Healthier soil structure supports improved nutrient availability, resulting in better crop performance and long-term farm productivity.
Long-Lasting Performance
Manufactured with premium-quality materials to withstand demanding field conditions and continuous agricultural operations.
04
Applications
Shree Umiya Subsoilers are widely used for:
- Deep tillage
- Hardpan breaking
- Soil compaction management
- Water infiltration improvement
- Root zone development
- Orchard farming
- Commercial agriculture
- Field rehabilitation
- Sustainable soil management
- Land preparation before cultivation
05
Suitable Soil Types
Designed for efficient operation in:
Black Cotton Soil
Clay Soil
Hard Compacted Soil
Loamy Soil
Sandy Loam
Red Soil
Mixed Agricultural Land
Suitable Crops
Ideal for improving soil conditions before cultivating:
Cotton
Sugarcane
Wheat
Maize
Soybean
Groundnut
Pulses
Oilseed Crops
Fruit Orchards
Vegetables
06
Available Models
Shree Umiya offers Chetak Subsoiler models designed for different tractor capacities and field requirements. Manufactured with heavy-duty construction and precision engineering, these models provide effective deep tillage, excellent durability, and reliable performance for improving soil health and long-term agricultural productivity.
07
Quality You Can Trust
Every Shree Umiya Subsoiler is manufactured using premium-quality steel and advanced production techniques to ensure exceptional durability, strength, and field performance. Our products undergo rigorous testing by government-recognized institutes, ensuring compliance with the highest quality standards established by the Government of India. Built for demanding agricultural conditions, our Subsoilers deliver dependable performance season after season.
08
Why Choose Shree Umiya?
- Trusted manufacturer of agricultural implements
- Heavy-duty construction for longer service life
- Precision-engineered deep tillage equipment
- Effective hardpan breaking performance
- Low maintenance and reliable operation
- Government-recognized quality testing
- Export-quality manufacturing standards
- Strong after-sales support
- Suitable for diverse soil conditions
- Trusted by farmers in India and international markets
Frequently Asked Questions
What is a Subsoiler?
A Subsoiler is a deep tillage implement designed to break compacted soil layers beneath the surface without disturbing the topsoil, improving root growth and water movement.
What are the benefits of using a Subsoiler?
It reduces soil compaction, improves root penetration, enhances water infiltration, increases soil aeration, and supports healthier crop development.
When should a Subsoiler be used?
Subsoiling is typically recommended before planting or when fields show signs of hardpan, poor drainage, or restricted root growth.
Which soil types are suitable for a Subsoiler?
Shree Umiya Subsoilers are suitable for compacted black cotton, clay, loamy, sandy loam, red, and mixed agricultural soils.
Do you export Subsoilers?
Yes. Shree Umiya exports high-quality Subsoilers to farmers, dealers, distributors, and agricultural businesses across international markets.
